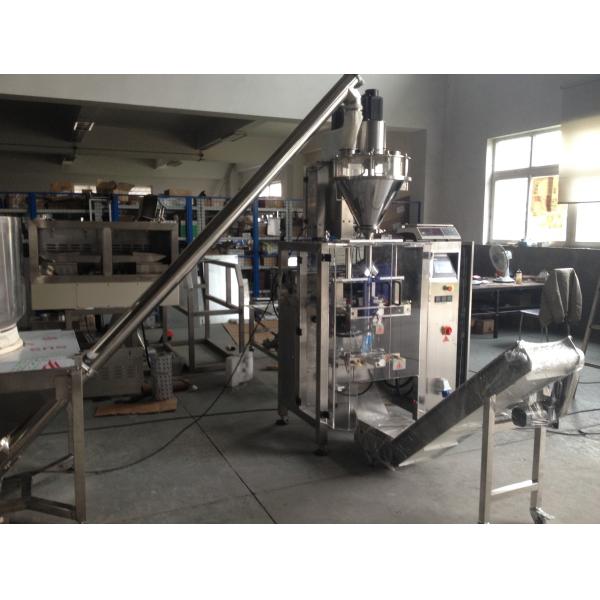

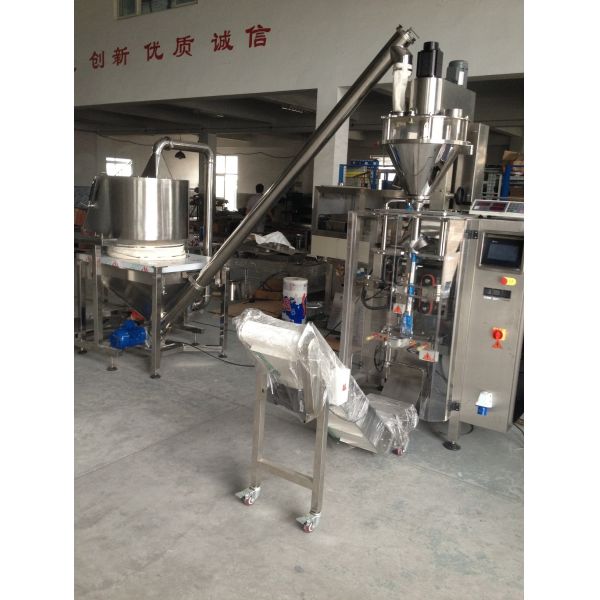

Fine Salt Automatic Packing Filling Line with Auger metering SS316 material
Optional configuration:
1. Printer
2. gusseting device
3. Inflator equipment
4. Pothook/ holes-punching functions( round or Euro slot/hole and others)
5. pre-clamping device of horizontal sealing
6. product-clip device of horizontal sealing
7. Automatic sales promotion card-sending device
8. Automatic sales promotion film strip device outside of the bag
The whole filling line machines:
A: Fully Automatic Vertical Filling and Sealing Machine:
Specifications:
| Model | TP-PF- V430 |
| Packing Speed | 40-60packs/min |
| Packaging film width | 150-430(mm) |
| Big Sizes(Length/ width) | 100-300(mm) /70-200(mm) |
| The total power | 4.9Kw |
| Heating power | Vertical sealing: 0.9 Kw ; Transverse sealing: 1.5 Kw |
| Total weight | 650Kg |
| The machine noise | ≤75 decibels |
| Outer dimension(Length*width*height) | 1430×1200×2700(mm) |
| Compressed air cost | 6-8Kg/m2 0.3m3/min |
| Power source type | 220V,50Hz |
Advantage:
(1)Collar type bag making structure,The bag is beautiful and the stability is high.
(2)Open internal structure, easy to change parts, easy to clean up.
(3)With cylinder as power, high efficiency, environmental protection and high stability.
(4)Make block bags and hanging bags according to customers' different requires.
Features
(1)Equipped with safety protection, comply with firm's safety management requires;
(2)Use intelligent temperature controlling machine to have accurate temperature control; ensure the artistic and neat seal;
(3)Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize
(4)the whole machine's control precision, reliability and intelligentized level;
(5)This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging
(exhausting) and products transporting automatically as well as counting;
(6)Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing;
(7)Have error indicating system, helping to handle the trouble immediately;
(8)Make block bags and hanging bags according to customers' different requires;
(9)Both stainless steel machines and carbon steel machines;
(10)Single-belt transportation, placidly and quickly, small friction, little waste;
(11)Have stainless steel model and carbon steel model for choose.
B: Auger feeding machine for powder material:
C: Auger filling head for metering:
D:Finished product conveyor:
